Activated Alumina Ball
CAS NO.: 1344-28-1.
Standard: HG/T 3927-2020.
Formular: Al2O3 . nH₂O (0<n≤0.8).
Package：25kg plastic bag; 750kg/super sack; 150kg/steel drum.
Application: Used to dry compressed ir and other gas and liquid streams, water filtration, catalyst carrier, desiccant for air separation.
Description：

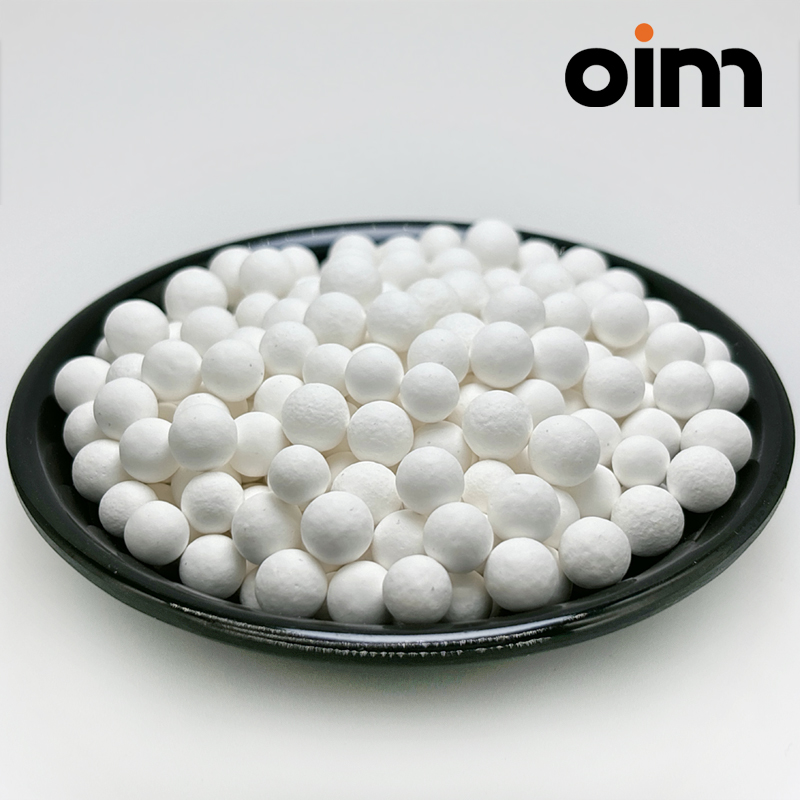

Activated alumina ball, it is white bead ball and insoluble in water. The main component is aluminium hydroxide. The surface is smooth. It has strong strength and high adsorption characteristic etc. It is good adsorbent in nature gas, air dryer, vacumm systems.
CAS NO.: 1344-28-1.
Standard: HG/T 3927-2020.
Formular: Al2O3 . nH₂O (0<n≤0.8).
Package：25kg plastic bag; 750kg/super sack; 150kg/steel drum.
Application: Used to dry compressed ir and other gas and liquid streams, water filtration, catalyst carrier, desiccant for air separation.
Description：
Activated alumina ball, it is white bead ball and insoluble in water. The main component is aluminium hydroxide. The surface is smooth. It has strong strength and high adsorption characteristic etc. It is good adsorbent in nature gas, air dryer, vacumm systems.
Previous: No More Data
|
Product Parameter
| Properties | Unit | Data | |||||
| Type | - | KA401 | KA402 | KA403 | KA404 | KA405 | |
| Crystal Type | x | x | ϒ | ϒ | x | ||
| Chemical Composition | Al2O3 | wt% | ≥93 | ≥93 | ≥93 | ≥93 | ≥93 |
| SiO2 | wt% | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | |
| Fe2O3 | wt% | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | |
| Na2O | wt% | ≤0.3 | ≤0.3 | ≤0.5 | 0.15-0.3 | ≤0.3 | |
| Physical properties | Bulk density | g/ml | 0.68-0.72 | 0.70-0.75 | 0.65-0.75 | 0.70-0.80 | 0.72-0.78 |
| Pore volume | ml/g | 0.30-0.45 | 0.30-0.42 | 0.40-0.46 | 0.40 | 0.30-0.50 | |
| Surface area | m2/g | ≥300 | ≥300 | 260-300 | ≥300 | ≥300 | |
| Active | wt% | / | / | 56-62 | / | / | |
| Attrition loss | wt% | ≤1 | ≤1 | ≤1 | ≤0.4 | ≤0.8 | |
| LOI | wt% | ≤7 | ≤7 | ≤7 | ≤5 | ≤7 | |
| Static absorption (RH=60%) | - | Water absorption | Fluorine absorption | Water absorption | Water absorption | Water absorption | |
| wt% | 17-19 | 0.2-0.3 | 50 | 50-70 | 17-19 | ||
| Crushing Strength | Φ1-2(mm) | N/pc | ≥40 | ≥40 | / | / | / |
| Φ2-3(mm) | N/pc | ≥70 | ≥70 | / | / | / | |
| Φ3-5(mm) | N/pc | ≥150 | / |
≥150 |
≥150 |
≥150 |
|
| Φ4-6(mm) | N/pc | ≥180 | / | ≥180 | ≥180 | ≥180 | |
| Φ5-7(mm) | N/pc | ≥250 | / | / | / | ≥250 | |
| Φ6-8(mm) | N/pc | ≥330 | / | / | / | ≥330 | |
● KA401: is for adsorbent.
● KA402: is for defluorination.
● KA403: is for absorption in producing H₂O₂.
● KA404: is for catalyst carrier.
● KA405: is for dehydrating and drying in air separation etc.
|
 |
| Description： Activated alumina is a highly porous form of aluminium oxide. It has high adsorption, high surface area and high pore volume. The size is smaller, the related strength is smaller, but the adsorption capacity is higher. Activated alumina play a crucial role in many different applications. As desiccant, it can be used to dry compressed air and other gas and liquid streams. Activated alumina can work with molecular sieve in air compressed dryer as deeply remove moisture. As adsorbent, it can remove fluoride from drinking water and remove arsenic, sulfur etc. As catalyst, it can use as a inert carrier, substrate other catalysts and claus catalyst etc. Also can use in hydrogen peroxide production. Activated alumina dew point can arrive -40℃. It can be regenerated by heating at 150~230 centigrade. |
Product Parameter
| Properties | Unit | Data | |||||
| Type | - | KA401 | KA402 | KA403 | KA404 | KA405 | |
| Crystal Type | x | x | ϒ | ϒ | x | ||
| Chemical Composition | Al2O3 | wt% | ≥93 | ≥93 | ≥93 | ≥93 | ≥93 |
| SiO2 | wt% | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | |
| Fe2O3 | wt% | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | |
| Na2O | wt% | ≤0.3 | ≤0.3 | ≤0.5 | 0.15-0.3 | ≤0.3 | |
| Physical properties | Bulk density | g/ml | 0.68-0.72 | 0.70-0.75 | 0.65-0.75 | 0.70-0.80 | 0.72-0.78 |
| Pore volume | ml/g | 0.30-0.45 | 0.30-0.42 | 0.40-0.46 | 0.40 | 0.30-0.50 | |
| Surface area | m2/g | ≥300 | ≥300 | 260-300 | ≥300 | ≥300 | |
| Active | wt% | / | / | 56-62 | / | / | |
| Attrition loss | wt% | ≤1 | ≤1 | ≤1 | ≤0.4 | ≤0.8 | |
| LOI | wt% | ≤7 | ≤7 | ≤7 | ≤5 | ≤7 | |
| Static absorption (RH=60%) | - | Water absorption | Fluorine absorption | Water absorption | Water absorption | Water absorption | |
| wt% | 17-19 | 0.2-0.3 | 50 | 50-70 | 17-19 | ||
| Crushing Strength | Φ1-2(mm) | N/pc | ≥40 | ≥40 | / | / | / |
| Φ2-3(mm) | N/pc | ≥70 | ≥70 | / | / | / | |
| Φ3-5(mm) | N/pc | ≥150 | / |
≥150 |
≥150 |
≥150 |
|
| Φ4-6(mm) | N/pc | ≥180 | / | ≥180 | ≥180 | ≥180 | |
| Φ5-7(mm) | N/pc | ≥250 | / | / | / | ≥250 | |
| Φ6-8(mm) | N/pc | ≥330 | / | / | / | ≥330 | |
● KA401: is for adsorbent.
● KA402: is for defluorination.
● KA403: is for absorption in producing H₂O₂.
● KA404: is for catalyst carrier.
● KA405: is for dehydrating and drying in air separation etc.
|
Application ● Air compressed dryers. ● Air purification. ● Hydrogen peroxide production. ● Nature gas drying and liquefied nature gas drying. ● Water purification to remove fluoride, arsenic and selenium. |
