Wire Gauze Structured Packing
Material: Stainless Steel 304, SS316, SS316L, Carbon Steel etc.
Appearance: Round.
Standard: HG/T 21559.1-2013.
Feature: High mass transfer efficiency, low pressure drop, corrosion-resistant.
Application: Used to a variety of distiillation tower, fine chemical, Isomer seperation etc.
Description：
Wire gauze structured packing is consisting of a number of parallet corrugated metal mesh sheets in straight rows. The surface area and void ration are big. The weight is light.
Material: Stainless Steel 304, SS316, SS316L, Carbon Steel etc.
Appearance: Round.
Standard: HG/T 21559.1-2013.
Feature: High mass transfer efficiency, low pressure drop, corrosion-resistant.
Application: Used to a variety of distiillation tower, fine chemical, Isomer seperation etc.
Description：
Wire gauze structured packing is consisting of a number of parallet corrugated metal mesh sheets in straight rows. The surface area and void ration are big. The weight is light.
Previous: Perforated Plate Corrugated Packing
Next: Metal Wire Mesh Demister
|
Product Parameter
|
Specification of wire gauze structured packing |
||||||||
|
Material: SS304, 304L, 410, 316, 316Letc. |
||||||||
|
Model |
Bulk density |
Specific surface |
Free volume |
Obl. |
P |
Theo.plate |
HETP |
F factor m/s |
|
250BX |
125 |
250 |
95 |
30° |
100~400 |
1~1.2 |
100 |
2.5~3.5 |
|
500BX |
250 |
500 |
90 |
30° |
400 |
2~2.5 |
200 |
2.0~2.4 |
|
700CY |
350 |
700 |
85 |
45° |
600~700 |
3.5~4 |
333-400 |
1.5~2.0 |
|
 |
| Description： Wire gauze structured packing is formed by arranging corrugated wire mesh sheets, the inclination angle of the corrugated sheets is 30° or 45°, and the directions of two adjacent corrugated sheets are opposite. When filling in the tower, the upper and lower trays of packing are stacked by 90° in a staggered manner. Wire gauze structured packing has the advantages of high efficiency, pressure reduction and large flux. The products are BX and CY types, which are often used in vacuum distillation, atmospheric distillation and absorption processes for difficult-to-separate and heat-sensitive substances. |
Product Parameter
|
Specification of wire gauze structured packing |
||||||||
|
Material: SS304, 304L, 410, 316, 316Letc. |
||||||||
|
Model |
Bulk density |
Specific surface |
Free volume |
Obl. |
P |
Theo.plate |
HETP |
F factor m/s |
|
250BX |
125 |
250 |
95 |
30° |
100~400 |
1~1.2 |
100 |
2.5~3.5 |
|
500BX |
250 |
500 |
90 |
30° |
400 |
2~2.5 |
200 |
2.0~2.4 |
|
700CY |
350 |
700 |
85 |
45° |
600~700 |
3.5~4 |
333-400 |
1.5~2.0 |
| Application ● Used for Fine chemical, flavors factory,isomer separation. ● Lower liquid loading systems. ● Organic intermediates ● Fatty acids/alcohols. ● Pilot columns. |
We Provide You With Quality Service
01
Quality Services
With a responsible QC team that has undergone rigorous and comprehensive quality inspection training. Strictly control every process from raw material, semi-finished product testing, packaging retesting, and finished product outbound to ensure that all goods are qualified before out of factory.
03
02
Marketing Services
Identify the target market,research the competiton, show the unique selling point, tailor the excellent solutions for customer. So that develop the market and build the brand effect.
Logistic Services
04
Logistic services including warehouse, transportation and other aspects to optimize customer logistics processes, inventory management, delivery and customs clearance. We have professional logistic department to deal with logistic by truck, container，railway wagon,ocean vessel and door to door service.

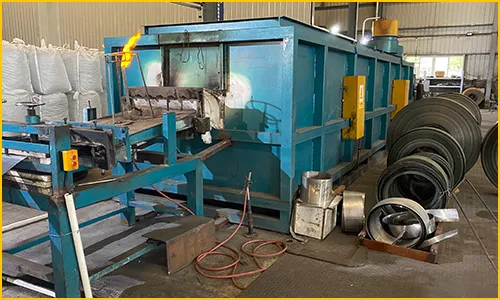

Production Device
 |
 |
 |
 |
 |
|
|
|
|
|
