Perforated Plate Corrugated Packing
Material: Stainless Steel 304, SS316, SS316L, Carbon Steel etc.
Appearance: Corrugated packing.
Standard: HG/T 21559.1-2013.
Feature: High mechanical strength, corrosion resistant, easy to clean and maintain.
Application: Used in precision distillation and vacuum distillation for separating and heat-sensitive substances, suitable for high-pressure and high temperature applications.
Description：
Perforated plate corrugated packing is consist of vertical sheets of corrugated metal and the angle of corrugation reversed in adjacent sheets to form an open structure. This kind corrugated packing’s structure can change the distribution of liquid and increase the transfer efficiency.
Material: Stainless Steel 304, SS316, SS316L, Carbon Steel etc.
Appearance: Corrugated packing.
Standard: HG/T 21559.1-2013.
Feature: High mechanical strength, corrosion resistant, easy to clean and maintain.
Application: Used in precision distillation and vacuum distillation for separating and heat-sensitive substances, suitable for high-pressure and high temperature applications.
Description：
Perforated plate corrugated packing is consist of vertical sheets of corrugated metal and the angle of corrugation reversed in adjacent sheets to form an open structure. This kind corrugated packing’s structure can change the distribution of liquid and increase the transfer efficiency.
Previous: Metal Super Raschig Ring
|
Product Parameter
|
Specification of perforated plate corrugated packing |
||||||
|
Material: SS304, 304L, 410, 316, 316L etc. |
||||||
|
Model |
Bulk density |
Specific surface |
Free volume |
Obl. |
P |
Theo.plate |
|
125Y |
100 |
125 |
98 |
45° |
200 |
1.0~1.2 |
|
250Y |
200 |
250 |
97 |
45° |
300 |
2.0~2.5 |
|
350Y |
280 |
350 |
94 |
45° |
350 |
3.5~4.0 |
|
500Y |
360 |
500 |
92 |
45° |
400 |
4.0~4.5 |
|
125X |
100 |
125 |
98 |
30° |
140 |
0.8~0.9 |
|
250X |
200 |
250 |
97 |
30° |
180 |
1.6~2.0 |
|
350X |
280 |
350 |
94 |
30° |
230 |
2.3~2.8 |
|
500X |
360 |
500 |
92 |
30° |
280 |
2.8~3.2 |
|
|
| Description： The perforated plate corrugated packing is assembled on the surface of the metal sheet after perforating, rolling small grains, and large corrugations. It has the characteristics of small resistance, uniform gas-liquid distribution, high efficiency, large flux, and insignificant amplification effect. It is used in negative pressure. Normal pressure and pressurized operation. The height of each disc unit is metal perforated plate corrugated packing, with a diameter of more than 1.5m, and the packing is made into blocks. It has the advantages of large flux, low resistance, high efficiency and strong anti-blocking ability. |
Product Parameter
|
Specification of perforated plate corrugated packing |
||||||
|
Material: SS304, 304L, 410, 316, 316L etc. |
||||||
|
Model |
Bulk density |
Specific surface |
Free volume |
Obl. |
P |
Theo.plate |
|
125Y |
100 |
125 |
98 |
45° |
200 |
1.0~1.2 |
|
250Y |
200 |
250 |
97 |
45° |
300 |
2.0~2.5 |
|
350Y |
280 |
350 |
94 |
45° |
350 |
3.5~4.0 |
|
500Y |
360 |
500 |
92 |
45° |
400 |
4.0~4.5 |
|
125X |
100 |
125 |
98 |
30° |
140 |
0.8~0.9 |
|
250X |
200 |
250 |
97 |
30° |
180 |
1.6~2.0 |
|
350X |
280 |
350 |
94 |
30° |
230 |
2.3~2.8 |
|
500X |
360 |
500 |
92 |
30° |
280 |
2.8~3.2 |
|
Application ● Applicated to ethyl benzene/ styrene, fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, absorption desorption. |
We Provide You With Quality Service
01
Quality Services
With a responsible QC team that has undergone rigorous and comprehensive quality inspection training. Strictly control every process from raw material, semi-finished product testing, packaging retesting, and finished product outbound to ensure that all goods are qualified before out of factory.
03
02
Marketing Services
Identify the target market,research the competiton, show the unique selling point, tailor the excellent solutions for customer. So that develop the market and build the brand effect.
Logistic Services
04
Logistic services including warehouse, transportation and other aspects to optimize customer logistics processes, inventory management, delivery and customs clearance. We have professional logistic department to deal with logistic by truck, container，railway wagon,ocean vessel and door to door service.
Production Device
 |
 |
 |
 |
 |
|
|
|
|
|

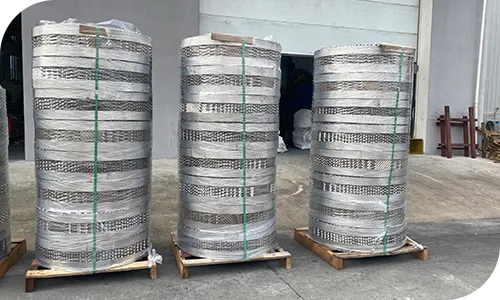

Package
 |
 |
 |
 |
 |
|
|
|
|
|
